Garage Light

Model Name : ART-CH05-W/3000K

ART-CH05-W3000K_arraystar

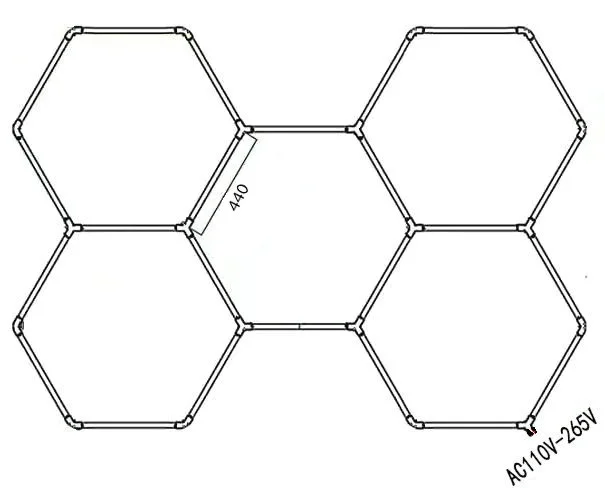

Installation （5 hexs）
garage_light_ART-CH05-W3000K

Tips :

  • Assemble the lights on the floor, power up test, hoisting if all lights on.
  • Overall hoisting, clamps for flat ceiling, zip ties for grille ceiling.
Packing List：
NO.NameSpecificationsQuantity
1Light tubelength440mm24 pcs
2Connectors2 way120° Corner connector11 pcs
3 way120° Corner connector9 pcs
power cord1 pcs
fixing part24 pcs
Parameters
ModelART-CH05-W/3000KLight Surface22mmApplicable Venue：
Size2347*1641mmLuminous Efficacy100-110LM/W440mm light tube power8W
Color Temperature3000KConnector MaterialPCMeasurement460*188*185mm
 Total Power192WShell MaterialPCG.W.KG
VoltageAC110V-265V  50HZBallast Life40000 Hours
