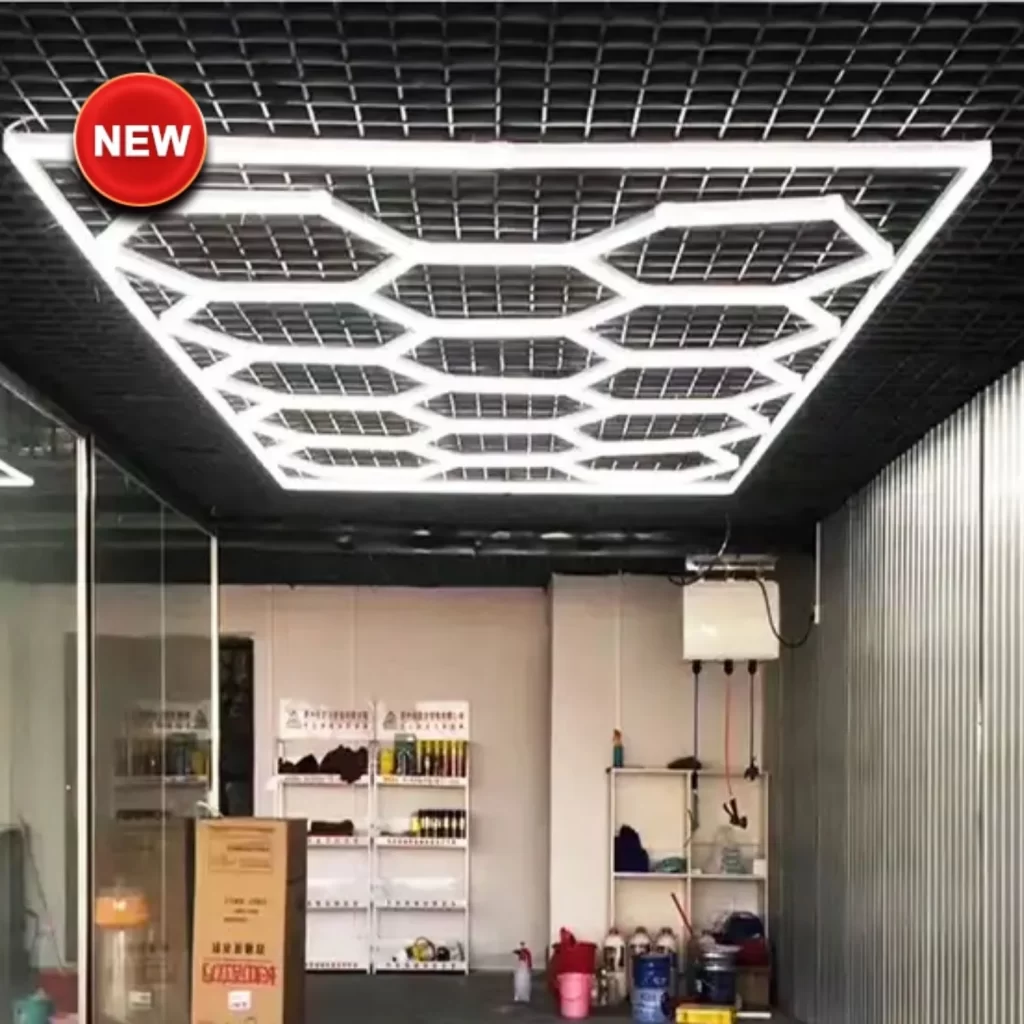

Garage Light

Model Name : ART-CH14L-W/ 6500K

newProduct_ART_ch14l_w_6500k

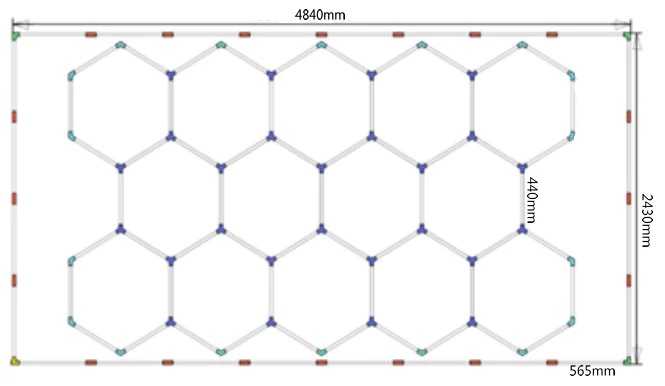

Installation：
garage_light_ART-CH14L-W 6500K_installation

Tips :

  • Assemble the lights on the floor, power up test, hoisting if all lights on
  • Overall hoisting, clamps for flat ceiling, zip ties for grille ceiling
Packing List：
Light SourceConnector Accessories
ItemSpecificationQtyItemQty
light tube440mm57pcs180° two-way connector20 pcs
light tube565mm24 pcs90° two-way connector3 pcs
120° Y connector27 pcs
120° two-way connector17 pcs
90° T connector1 pcs
power cord2 pcs
Parameters :
ModelART-CH14L-W/ 6500KLight Surface22mmApplicable Venue：
4000*6000mm
Size4840*2430mmLuminous Efficacy100-110LM/W440mm light tube power8W
Color Temperature6500K Connector MaterialPC565mm light tube power9W
Total Power672WShell MaterialPCMeasurement59*44*21cm
VoltageAC110V-250V 50HZBallast Life40000 HoursG.W.
