Garage Light

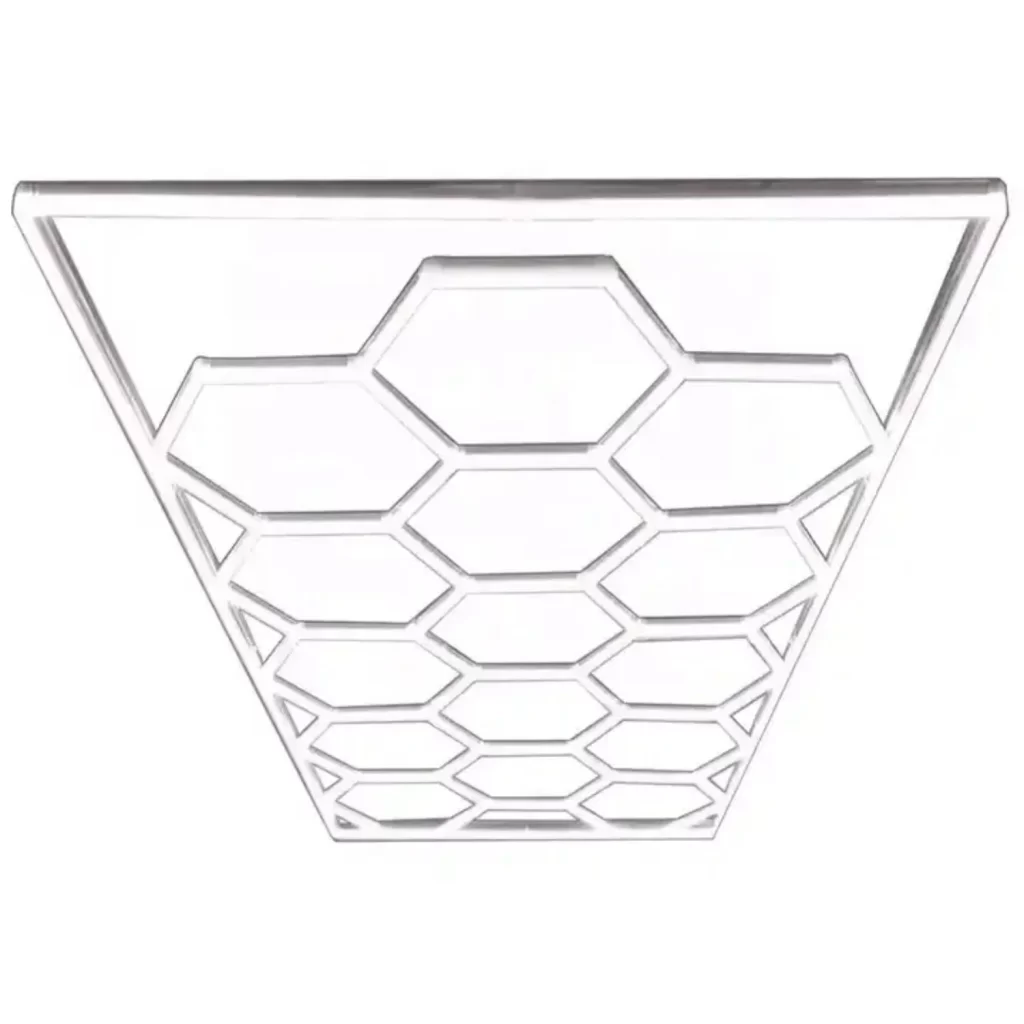

Model Name : ART-CH15L-W

garage_light_ART-CH15L-W

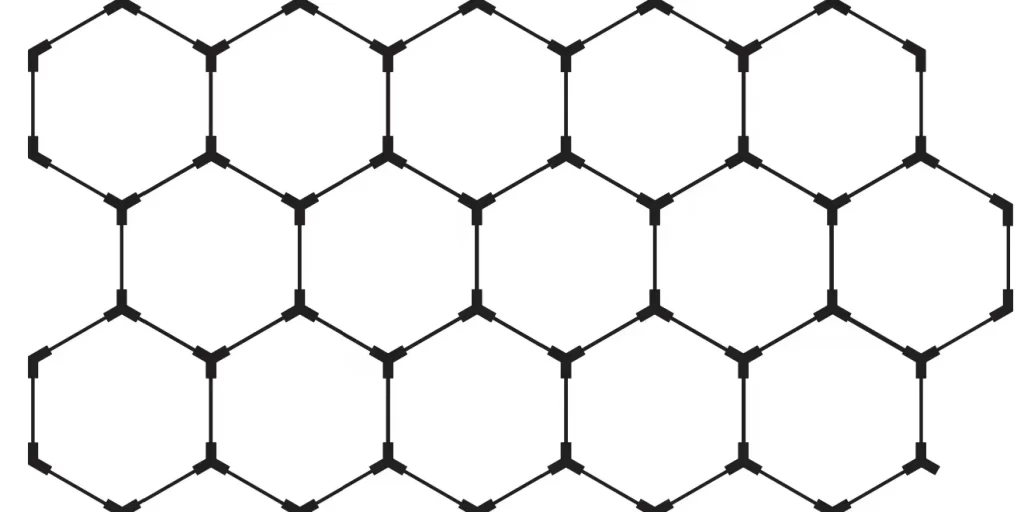

Circuit Diagram：
garage_light_ART-CH15L-W_installation

Tips :

  • Assemble the lights on the floor, power up test, hoisting if all lights on
  • Overall hoisting, clamps for flat ceiling, zip ties for grille ceiling
Packing List：
NO.NameSpecificationsQuantity
1Light tubelength440mm60 pcs
2Connectors2 way120° two-way connector17 pcs
3 way120° Y connector29 pcs
power cord1 pcs
Parameters :
ModelART-CH15L-WLight Surface22mmApplicable Venue：
4000*6000mm
Size4840*2430mmLuminous Efficacy120LM/W440mm light tube power8W
Color Temperature6500KConnector MaterialPCMeasurement46*23*33cm
 Total Power480WShell MaterialAIG.W.
VoltageAC110V-250V 50HZBallast Life40000 Hours
