Garage Light

Model Name : ART-CH17L-W

garage_light_ART-CH17L-W_new

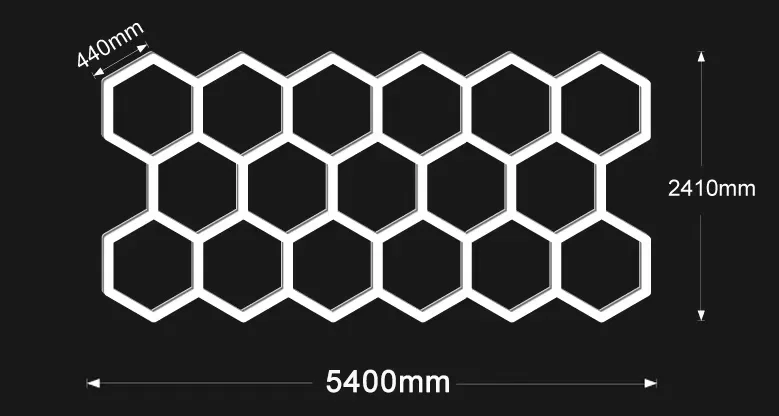

Installation：
garage_light_ART-CH17L-W_installation

Tips :

  • Assemble the lights on the floor, power up test, hoisting if all lights on
  • Overall hoisting, clamps for flat ceiling, zip ties for grille ceiling
Packing List：
NO.NameSpecificationsQuantity
1Light tubelength440mm 68pcs
2Connectors2 way120° two-way connector19 pcs
3 way120° Y connector33 pcs
power cord1 pcs
Parameters :
ModelART-CH17L-WLight Surface22mmApplicable Venue：
4000*6000mm
Luminous Efficacy120LM/W440mm light tube power8W
Color Temperature6500K Connector MaterialPCMeasurement59*23*31
Total Power544WShell MaterialAI
VoltageAC110V-250V 50HZBallast Life20000 Hours
