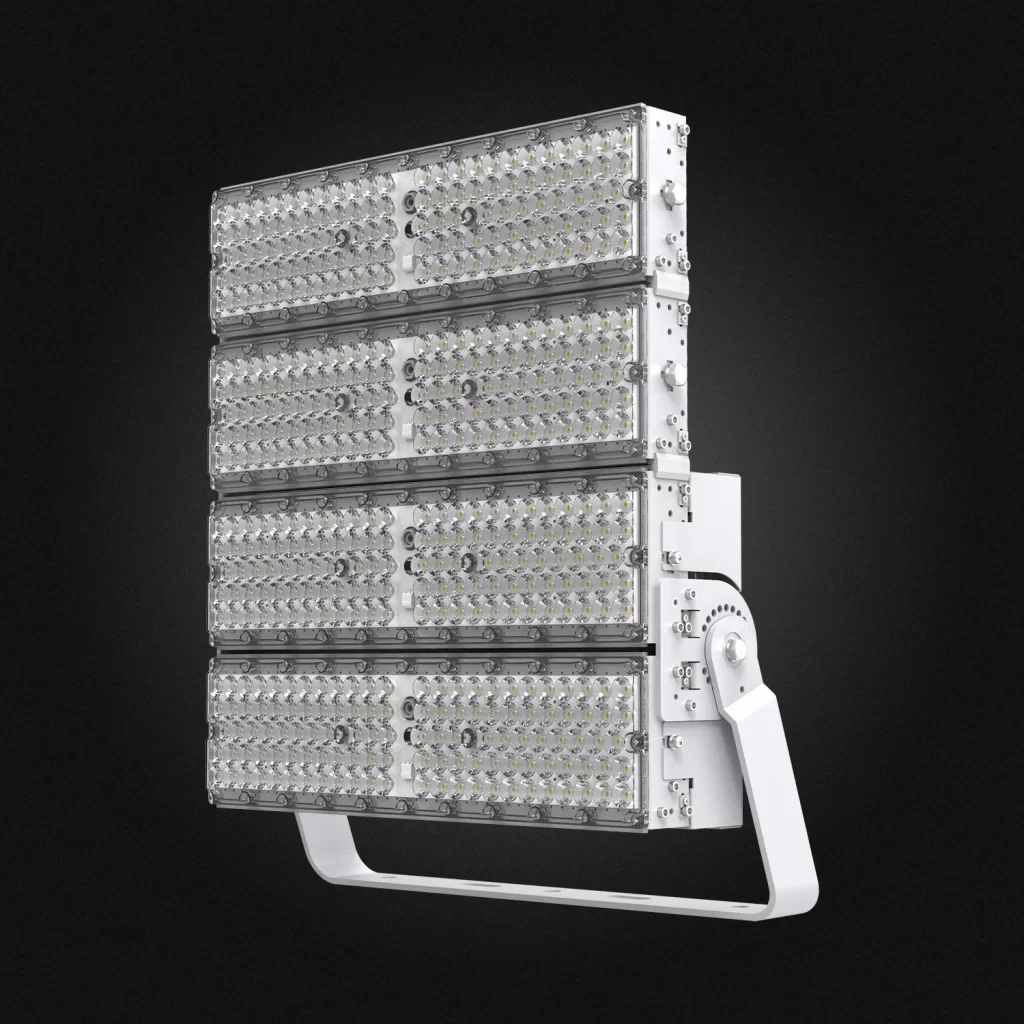

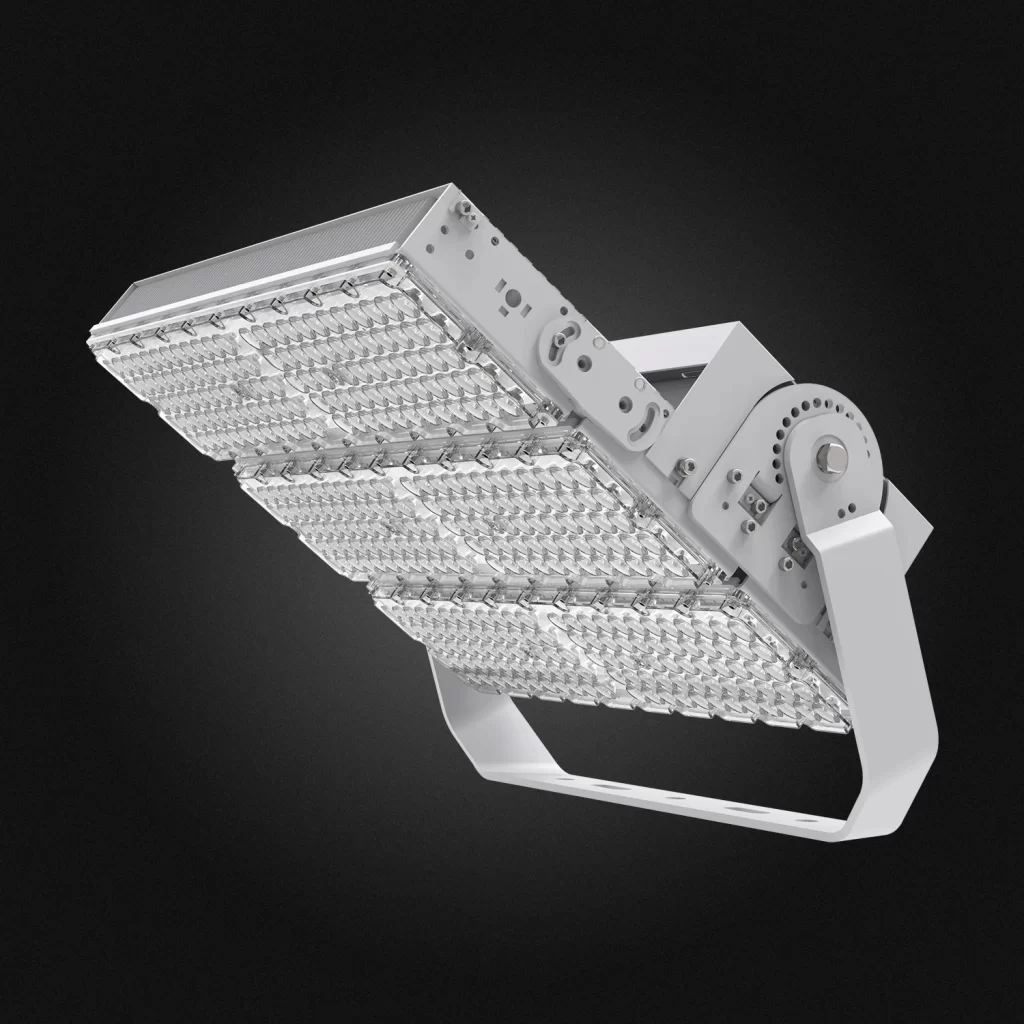

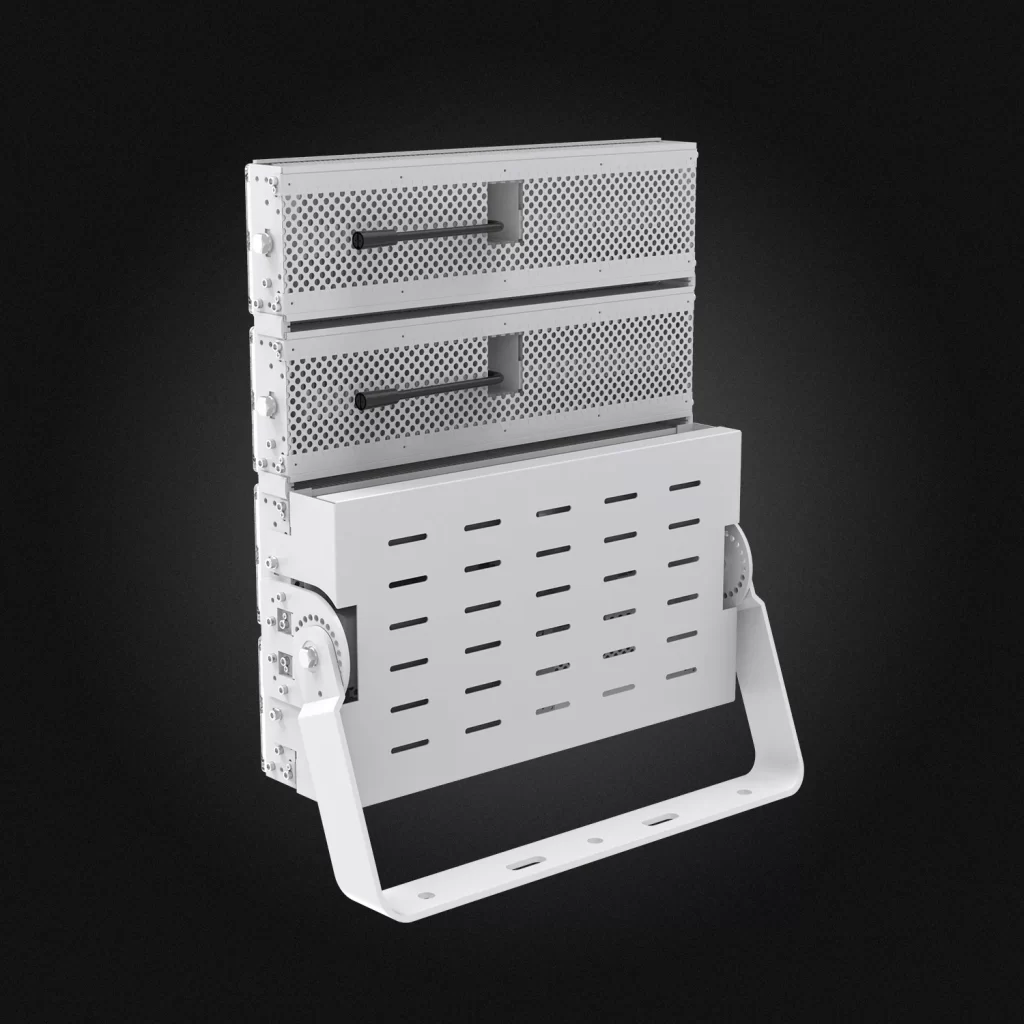

lED stadium Light

Model Name : ART-HF03-EXXW-X-Y

  • Lumileds chips, High brightness, Low light decay & long lifetime
  • International driver brand, overheat protection, high convert
    efficiency, high PF & surge protection, (1-10V,DALI2.0)
  • Die-casting technology with ADC12, excellent thermal
    management
  • Optical UV resistant PC lens with 94% light transmittance, IK08
  • Tempered glass optional for coastal areas
  • Bracket Installation, operation temperature:-35℃- +50℃
Products Parameters
ModelART-HF03-EXXW-X-YColour Temp3000K;4000K;5000K;5700K
LEDs BrandLumileds/OsramCRI>70;>80;>90
Driver BrandSosen/Philips/InventronicsPower Factor>0.95
Input VoltageAC 200-240V;100-277V 50/60HzBeam Angle10°;20°;40°;60°;135°*60°
Power200W;240W;300W;400W;480W;600W;720W;
800W;900W;960W;1000W;1200W;1500W		IP RatingIP66
